Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 3.2034 GeV2 |
|---|---|
| xb : | 0.4425 |
| -t: | 0.3477 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

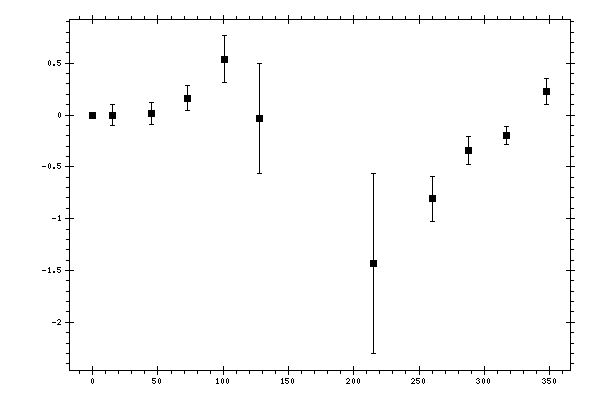

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 15.3995 | -0.0009 | 0.1011 |
| 44.9497 | 0.0171 | 0.105 |
| 72.3988 | 0.1619 | 0.1182 |
| 100.946 | 0.5388 | 0.2249 |
| 127.6275 | -0.0321 | 0.5283 |
| 0 | 0 | 0 |
| 0 | 0 | 0 |
| 215.435 | -1.4294 | 0.8676 |
| 260.5981 | -0.8092 | 0.2167 |
| 287.5163 | -0.3409 | 0.138 |
| 317.0495 | -0.199 | 0.0898 |
| 347.4955 | 0.2263 | 0.1225 |
