Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 3.5995 GeV2 |
|---|---|
| xb : | 0.4412 |
| -t: | 0.3522 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

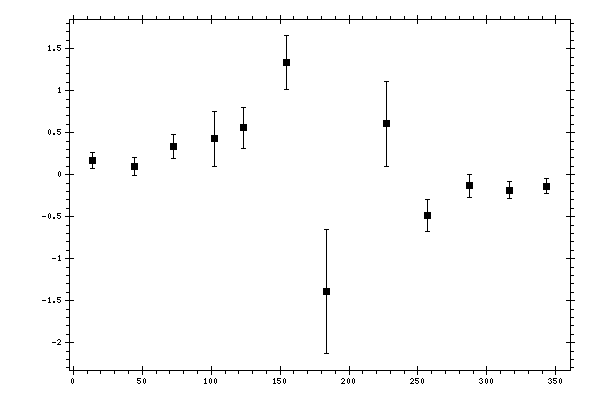

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 13.9965 | 0.167 | 0.0935 |
| 44.4166 | 0.0996 | 0.1106 |
| 72.8218 | 0.3402 | 0.1419 |
| 102.2406 | 0.4252 | 0.326 |
| 123.4133 | 0.5592 | 0.2449 |
| 154.783 | 1.3347 | 0.318 |
| 183.291 | -1.3904 | 0.7347 |
| 227.3706 | 0.6054 | 0.5066 |
| 257.0698 | -0.4834 | 0.1913 |
| 287.2194 | -0.1345 | 0.1332 |
| 316.6555 | -0.1859 | 0.1004 |
| 343.1228 | -0.1352 | 0.0917 |
