Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.5557 GeV2 |
|---|---|
| xb : | 0.1767 |
| -t: | 0.1376 |
|

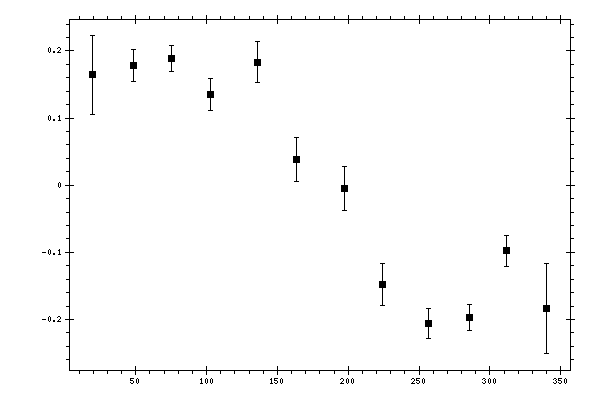

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 19.6015 | 0.1643 | 0.0582 |
| 48.3572 | 0.1782 | 0.0233 |
| 75.0192 | 0.189 | 0.0194 |
| 102.6721 | 0.1346 | 0.024 |
| 135.6295 | 0.1834 | 0.0307 |
| 163.5866 | 0.0389 | 0.0327 |
| 197.0813 | -0.0045 | 0.0328 |
| 224.426 | -0.1473 | 0.0312 |
| 256.8322 | -0.2061 | 0.0228 |
| 285.7622 | -0.1975 | 0.0195 |
| 311.4636 | -0.0978 | 0.0234 |
| 339.83 | -0.1831 | 0.067 |
