Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.5516 GeV2 |
|---|---|
| xb : | 0.1753 |
| -t: | 0.7741 |
|

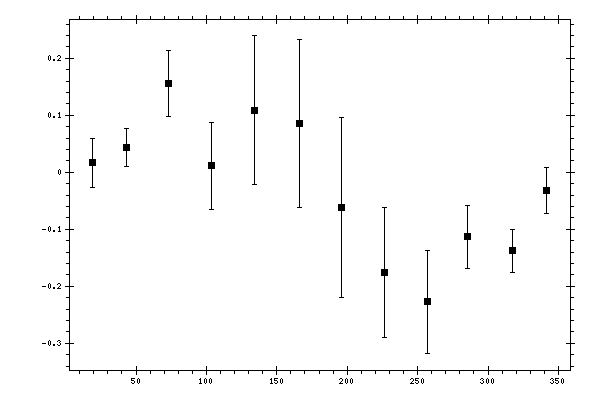

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 19.2148 | 0.0173 | 0.043 |
| 43.3502 | 0.0434 | 0.0337 |
| 73.0862 | 0.156 | 0.0575 |
| 103.7626 | 0.0116 | 0.0767 |
| 133.8289 | 0.1091 | 0.1304 |
| 165.8703 | 0.0856 | 0.1473 |
| 196.0084 | -0.0619 | 0.1582 |
| 226.5035 | -0.1758 | 0.1146 |
| 256.8153 | -0.227 | 0.0901 |
| 285.5956 | -0.1131 | 0.0556 |
| 317.365 | -0.1377 | 0.0382 |
| 341.3833 | -0.032 | 0.041 |
