Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.9394 GeV2 |
|---|---|
| xb : | 0.2476 |
| -t: | 0.7694 |
|

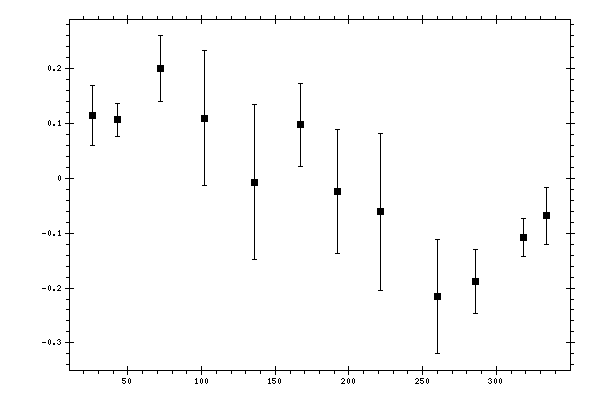

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 26.1108 | 0.1146 | 0.0545 |
| 42.7182 | 0.1068 | 0.0302 |
| 72.0774 | 0.1998 | 0.0595 |
| 102.07 | 0.1095 | 0.1224 |
| 136.2214 | -0.007 | 0.1413 |
| 166.7812 | 0.0975 | 0.0758 |
| 192.1033 | -0.0241 | 0.1132 |
| 221.3969 | -0.0614 | 0.1427 |
| 260.112 | -0.2148 | 0.1038 |
| 285.7552 | -0.1881 | 0.0574 |
| 318.1433 | -0.108 | 0.0338 |
| 333.8692 | -0.0685 | 0.0523 |
