Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.0231 GeV2 |
|---|---|
| xb : | 0.3516 |
| -t: | 0.7752 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

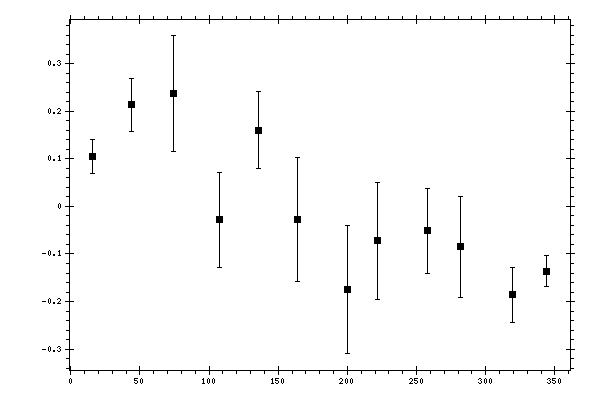

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 15.8605 | 0.1045 | 0.036 |
| 44.0336 | 0.2138 | 0.0555 |
| 74.4812 | 0.2373 | 0.1212 |
| 107.2669 | -0.0285 | 0.1002 |
| 135.5475 | 0.1603 | 0.0816 |
| 163.8427 | -0.0269 | 0.1302 |
| 200.2824 | -0.1743 | 0.1341 |
| 221.6566 | -0.0718 | 0.1229 |
| 257.7163 | -0.0514 | 0.0893 |
| 281.9271 | -0.0848 | 0.1062 |
| 319.0823 | -0.1852 | 0.0578 |
| 343.7903 | -0.1362 | 0.0321 |
