Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.7054 GeV2 |
|---|---|
| xb : | 0.3607 |
| -t: | 0.7623 |
|

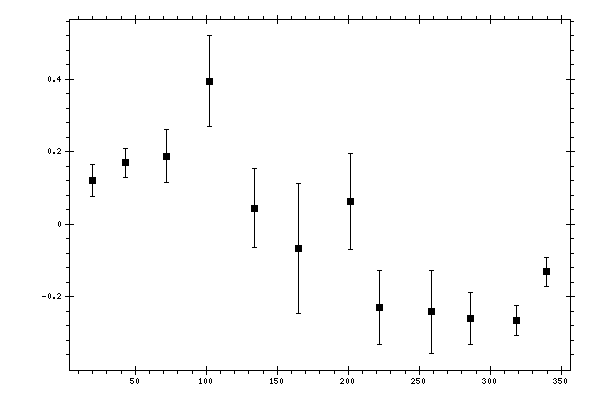

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 20.036 | 0.1204 | 0.0451 |
| 43.4706 | 0.169 | 0.04 |
| 72.3288 | 0.1874 | 0.0731 |
| 102.2116 | 0.3938 | 0.1253 |
| 133.7274 | 0.0446 | 0.1088 |
| 165.0042 | -0.0668 | 0.18 |
| 201.2587 | 0.0624 | 0.1314 |
| 222.2709 | -0.2296 | 0.1022 |
| 258.8822 | -0.2415 | 0.1134 |
| 285.7662 | -0.2588 | 0.0719 |
| 318.3416 | -0.2659 | 0.0413 |
| 339.4797 | -0.1306 | 0.0403 |
