Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.7483 GeV2 |
|---|---|
| xb : | 0.446 |
| -t: | 0.7955 |
|

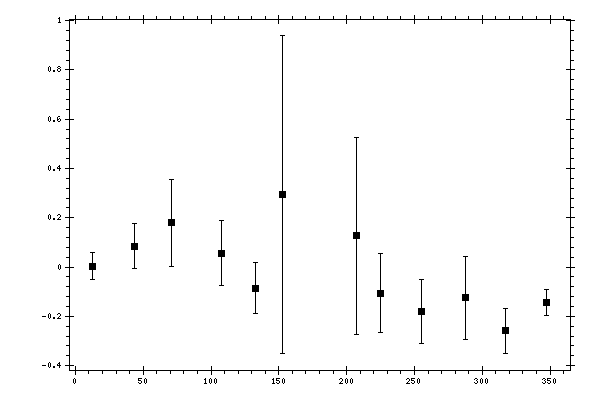

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 12.7628 | 0.004 | 0.0555 |
| 43.3003 | 0.0843 | 0.0911 |
| 70.7273 | 0.1787 | 0.1767 |
| 107.7473 | 0.056 | 0.1318 |
| 133.1713 | -0.0853 | 0.1045 |
| 152.7024 | 0.2943 | 0.6438 |
| 207.3877 | 0.1264 | 0.3987 |
| 225.1784 | -0.1062 | 0.1603 |
| 254.9665 | -0.1807 | 0.1311 |
| 287.2929 | -0.1257 | 0.17 |
| 317.4378 | -0.2582 | 0.0908 |
| 347.2236 | -0.1437 | 0.0516 |
