Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 3.3374 GeV2 |
|---|---|
| xb : | 0.4705 |
| -t: | 0.7837 |
|

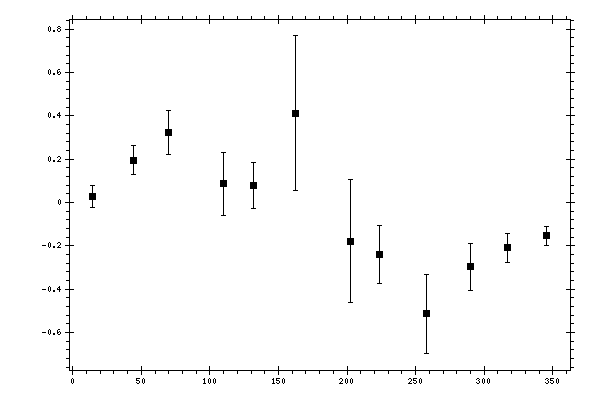

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 14.4898 | 0.0295 | 0.0507 |
| 44.3513 | 0.1953 | 0.0663 |
| 70.0179 | 0.3252 | 0.1016 |
| 109.6231 | 0.0859 | 0.1452 |
| 131.9146 | 0.078 | 0.1058 |
| 162.5253 | 0.4134 | 0.3562 |
| 202.4267 | -0.1786 | 0.285 |
| 223.6004 | -0.2401 | 0.1336 |
| 257.7306 | -0.5128 | 0.1827 |
| 290.1993 | -0.2971 | 0.1098 |
| 316.6149 | -0.2093 | 0.0685 |
| 345.2748 | -0.1538 | 0.0448 |
