Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.2039 GeV2 |
|---|---|
| xb : | 0.2505 |
| -t: | 1.2899 |
|

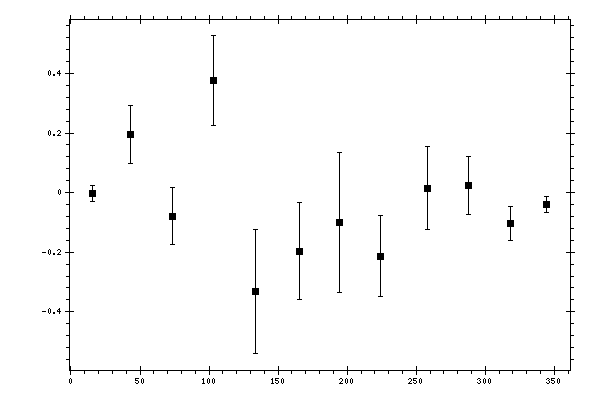

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 15.7264 | -0.0033 | 0.0261 |
| 43.3675 | 0.1964 | 0.0974 |
| 73.4947 | -0.0785 | 0.0965 |
| 103.2529 | 0.3765 | 0.1497 |
| 133.5349 | -0.3321 | 0.2067 |
| 165.1868 | -0.1964 | 0.1624 |
| 194.6068 | -0.0998 | 0.2354 |
| 224.2634 | -0.214 | 0.1361 |
| 258.2389 | 0.0148 | 0.1391 |
| 287.5152 | 0.0232 | 0.0965 |
| 318.0201 | -0.1046 | 0.0572 |
| 344.1516 | -0.0398 | 0.0281 |
