Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.6884 GeV2 |
|---|---|
| xb : | 0.3582 |
| -t: | 1.342 |
|

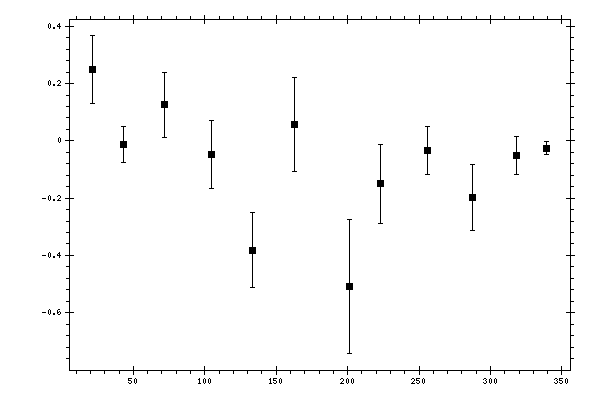

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 21.522 | 0.2476 | 0.1189 |
| 43.3482 | -0.013 | 0.0641 |
| 71.9022 | 0.1258 | 0.1133 |
| 104.9347 | -0.0489 | 0.1182 |
| 133.6404 | -0.3814 | 0.1305 |
| 162.5558 | 0.0575 | 0.1636 |
| 201.1095 | -0.5074 | 0.2338 |
| 223.0241 | -0.1502 | 0.138 |
| 255.5426 | -0.0334 | 0.0852 |
| 287.0341 | -0.1982 | 0.116 |
| 318.1127 | -0.0508 | 0.0663 |
| 339.0533 | -0.0251 | 0.0223 |
