Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.5078 GeV2 |
|---|---|
| xb : | 0.3213 |
| -t: | 0.1743 |
|

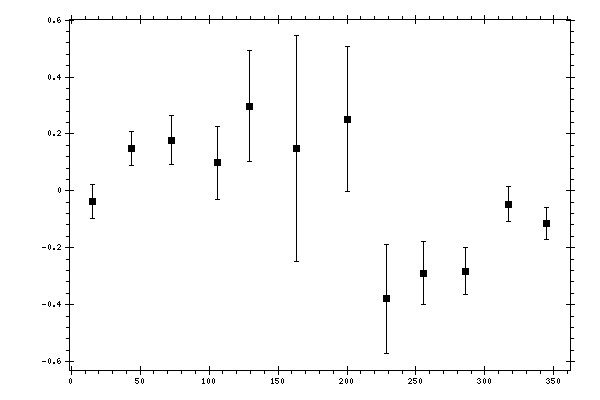

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 15.529 | -0.0364 | 0.0601 |
| 43.7151 | 0.1503 | 0.0601 |
| 72.5063 | 0.1787 | 0.0853 |
| 105.9772 | 0.0991 | 0.1288 |
| 129.1182 | 0.2981 | 0.1942 |
| 163.4146 | 0.1477 | 0.3972 |
| 200.5967 | 0.2523 | 0.2561 |
| 228.5333 | -0.3794 | 0.1911 |
| 255.1149 | -0.2888 | 0.1108 |
| 285.9319 | -0.2818 | 0.0842 |
| 317.3666 | -0.0474 | 0.0612 |
| 344.5342 | -0.1131 | 0.0563 |
