Measurement E18M20

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E18M37 and E18M38 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_z, dimensionless
Spin transfer coefficient C_z for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: none

W :	2.126 GeV
E_γ :	1.939 GeV

Observable quantity measured (Y axis): C_z, dimensionless

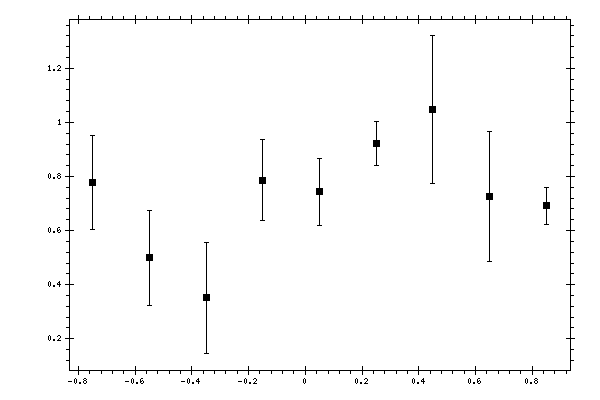

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_z, dimensionless	Data errors, dimensionless
-0.75	0.778	0.174
-0.55	0.499	0.177
-0.35	0.352	0.205
-0.15	0.786	0.149
0.05	0.743	0.125
0.25	0.922	0.083
0.45	1.048	0.272
0.65	0.726	0.239
0.85	0.691	0.068
