Measurement E18M26

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E18M37 and E18M38 measurements.

Publication:

Quantity measured: Cz, dimensionless
Spin transfer coefficient Cz for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K+ Λ, polarization: none

W : 2.255 GeV
Eγ : 2.24 GeV

Observable quantity measured (Y axis): Cz, dimensionless

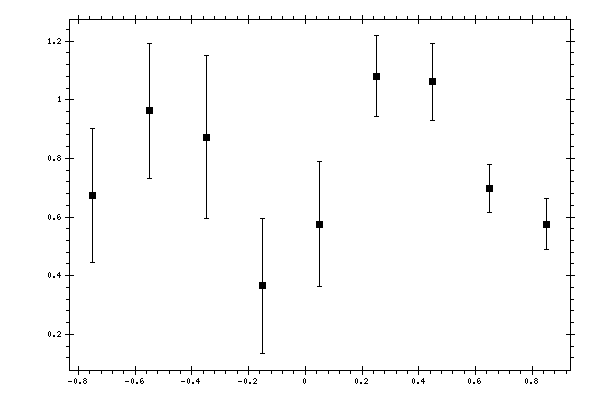

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ),
dimensionless
Cz,
dimensionless
Data errors,
dimensionless
-0.75 0.674 0.228
-0.55 0.962 0.231
-0.35 0.872 0.278
-0.15 0.365 0.229
0.05 0.576 0.213
0.25 1.08 0.138
0.45 1.061 0.13
0.65 0.698 0.081
0.85 0.576 0.087
