Measurement E18M30

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E18M37 and E18M38 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_z, dimensionless
Spin transfer coefficient C_z for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: none

W :	2.338 GeV
E_γ :	2.443 GeV

Observable quantity measured (Y axis): C_z, dimensionless

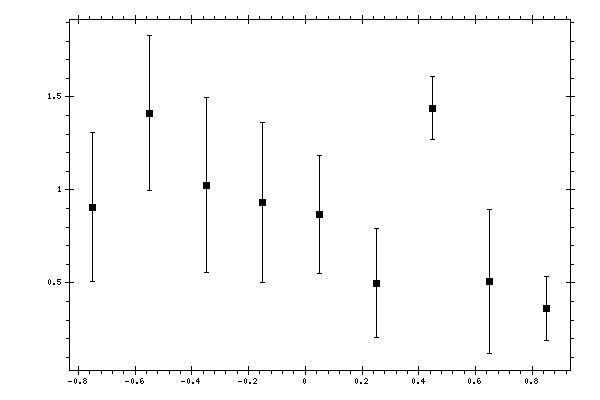

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_z, dimensionless	Data errors, dimensionless
-0.75	0.907	0.402
-0.55	1.412	0.416
-0.35	1.025	0.472
-0.15	0.932	0.429
0.05	0.866	0.317
0.25	0.499	0.293
0.45	1.439	0.17
0.65	0.508	0.386
0.85	0.36	0.172
