Experiment: Measurement of the Proton Spin Structure at Long Distances, 2021
Spokespersons: X. Zheng et al. (CLAS Collaboration)
Publication:
Quantity measured: g1,
Polarized inclusive structure function
Beam: e, polarization: polarized
Target: p (Z=1, A=1), polarization: longitudinal
Final state: inclusive, polarization: none
| Q2 : | 0.0705 GeV2 |
|---|---|
| W : | 1.11 — 1.93 GeV |
|
Observable quantity measured (Y axis): g1,
Parameter (X axis): W, |
Click here to get data in text file, delimited with tabs.

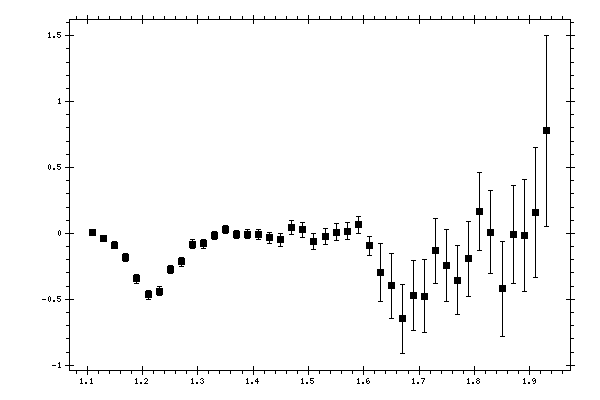

Measured data:
| W | g1 | Data errors | Systematic errors |
|---|---|---|---|
| 1.11 | 0.0053 | 0.0219 | 0.0135 |
| 1.13 | -0.0409 | 0.0232 | 0.0149 |
| 1.15 | -0.0882 | 0.0275 | 0.0211 |
| 1.17 | -0.1823 | 0.0307 | 0.0268 |
| 1.19 | -0.3438 | 0.0336 | 0.0291 |
| 1.21 | -0.4654 | 0.0361 | 0.0206 |
| 1.23 | -0.4393 | 0.0341 | 0.0253 |
| 1.25 | -0.2729 | 0.0326 | 0.0318 |
| 1.27 | -0.2148 | 0.0324 | 0.0243 |
| 1.29 | -0.0815 | 0.0326 | 0.0206 |
| 1.31 | -0.0799 | 0.0315 | 0.0192 |
| 1.33 | -0.0159 | 0.0303 | 0.0193 |
| 1.35 | 0.0278 | 0.0294 | 0.0261 |
| 1.37 | -0.0077 | 0.0323 | 0.017 |
| 1.39 | -0.0071 | 0.0343 | 0.0133 |
| 1.41 | -0.0081 | 0.0371 | 0.014 |
| 1.43 | -0.0334 | 0.0424 | 0.0125 |
| 1.45 | -0.0469 | 0.0494 | 0.0127 |
| 1.47 | 0.048 | 0.0532 | 0.0197 |
| 1.49 | 0.0268 | 0.0585 | 0.0217 |
| 1.51 | -0.0589 | 0.0608 | 0.0155 |
| 1.53 | -0.0213 | 0.0623 | 0.0149 |
| 1.55 | 0.0088 | 0.0646 | 0.0236 |
| 1.57 | 0.018 | 0.0646 | 0.0172 |
| 1.59 | 0.0654 | 0.0658 | 0.0228 |
| 1.61 | -0.0934 | 0.0724 | 0.0104 |
| 1.63 | -0.2964 | 0.2194 | 0.0138 |
| 1.65 | -0.3986 | 0.2459 | 0.0218 |
| 1.67 | -0.6487 | 0.2592 | 0.0233 |
| 1.69 | -0.4695 | 0.2653 | 0.0176 |
| 1.71 | -0.4757 | 0.2768 | 0.0389 |
| 1.73 | -0.132 | 0.2444 | 0.0089 |
| 1.75 | -0.2445 | 0.2754 | 0.0158 |
| 1.77 | -0.3532 | 0.2587 | 0.0283 |
| 1.79 | -0.1911 | 0.2854 | 0.0219 |
| 1.81 | 0.1645 | 0.2945 | 0.0325 |
| 1.83 | 0.0107 | 0.312 | 0.0224 |
| 1.85 | -0.4197 | 0.3608 | 0.0238 |
| 1.87 | -0.008 | 0.3694 | 0.0163 |
| 1.89 | -0.0158 | 0.4249 | 0.0368 |
| 1.91 | 0.1556 | 0.4926 | 0.0437 |
| 1.93 | 0.7775 | 0.7211 | 0.1074 |
