Measurement E182M50

You are not logged in.

Experiment: Measurement of the Proton Spin Structure at Long Distances, 2021

Spokespersons: X. Zheng et al. (CLAS Collaboration)

Publication:

Quantity measured: A1·F1,

Beam: e, polarization: polarized
Target: p (Z=1, A=1), polarization: longitudinal
Final state: inclusive, polarization: none

Q2 : 0.8412 GeV2
W : 1.11 — 2.03 GeV

Observable quantity measured (Y axis): A1·F1,

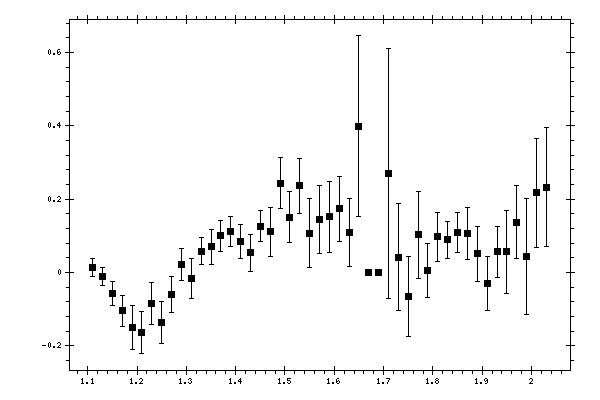

Plot measurement data

Parameter (X axis): W,

Click here to get data in text file, delimited with tabs.

Measured data:

W A1·F1 Data errors Systematic errors
1.11 0.0142 0.0248 0.022
1.13 -0.0107 0.0252 0.0134
1.15 -0.057 0.0325 0.0173
1.17 -0.1041 0.0416 0.0195
1.19 -0.1497 0.0595 0.013
1.21 -0.1632 0.0564 0.0122
1.23 -0.0851 0.0569 0.0179
1.25 -0.1355 0.0574 0.0189
1.27 -0.0597 0.0495 0.0185
1.29 0.0213 0.0438 0.0185
1.31 -0.0153 0.0541 0.0294
1.33 0.0583 0.0372 0.0213
1.35 0.0699 0.0472 0.0278
1.37 0.1001 0.0412 0.033
1.39 0.1127 0.0407 0.0274
1.41 0.0851 0.047 0.0381
1.43 0.0539 0.0512 0.0354
1.45 0.1271 0.0421 0.0326
1.47 0.1109 0.0657 0.0557
1.49 0.2443 0.0695 0.0626
1.51 0.1515 0.0694 0.0754
1.53 0.2364 0.0761 0.0569
1.55 0.1076 0.0948 0.0585
1.57 0.1451 0.0928 0.0632
1.59 0.1525 0.0969 0.0518
1.61 0.1743 0.0882 0.0709
1.63 0.1098 0.0934 0.0453
1.65 0.3995 0.2463 0.1881
1.67 0 0 0
1.69 0 0 0
1.71 0.2697 0.3413 0.1812
1.73 0.0417 0.1458 0.0616
1.75 -0.0644 0.1086 0.0459
1.77 0.1027 0.1183 0.0571
1.79 0.0068 0.0735 0.0408
1.81 0.0981 0.0667 0.0292
1.83 0.0891 0.051 0.0198
1.85 0.1088 0.0545 0.0251
1.87 0.1062 0.0717 0.0245
1.89 0.0511 0.0743 0.0267
1.91 -0.0303 0.0734 0.0134
1.93 0.0566 0.0689 0.024
1.95 0.0564 0.1144 0.0174
1.97 0.1369 0.0997 0.0175
1.99 0.045 0.1583 0.056
2.01 0.2175 0.1489 0.1256
2.03 0.2335 0.1615 0.2029
