Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: E89-004, 2005
Spokespersons: R. A. Schumacher
Experiment comment: Correlated data on W & cos(theta) distribution are available in E19M33 and E19M34 measurements.
Publication:
Quantity measured: Cx, dimensionless
Spin transfer coefficient Cx for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none
| W : | 2.296 GeV |
|---|---|
| Eγ : | 2.341 GeV |
|
Observable quantity measured (Y axis): Cx, dimensionless
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.

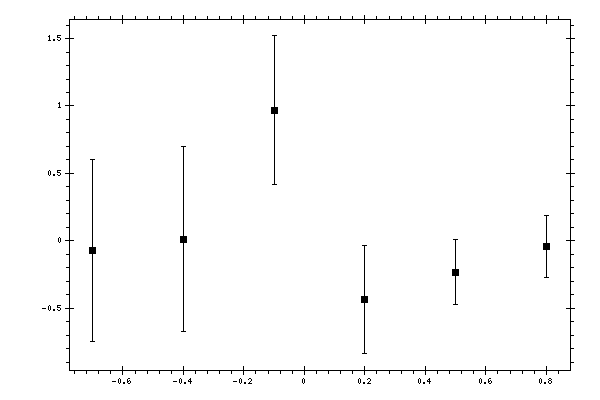

Measured data:
|
cos(θ),
dimensionless |
Cx,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| -0.7 | -0.074 | 0.676 |
| -0.4 | 0.01 | 0.686 |
| -0.1 | 0.97 | 0.55 |
| 0.2 | -0.435 | 0.398 |
| 0.5 | -0.232 | 0.24 |
| 0.8 | -0.042 | 0.227 |
