Measurement E19M30

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E19M33 and E19M34 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_z, dimensionless
Spin transfer coefficient C_z for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Σ⁰, polarization: none

W :	2.416 GeV
E_γ :	2.642 GeV

Observable quantity measured (Y axis): C_z, dimensionless

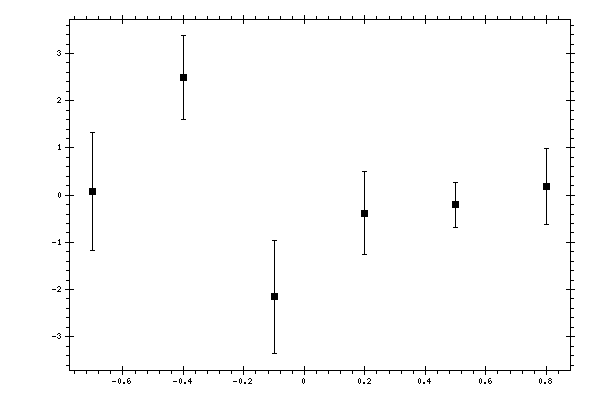

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_z, dimensionless	Data errors, dimensionless
-0.7	0.072	1.251
-0.4	2.485	0.89
-0.1	-2.157	1.191
0.2	-0.382	0.883
0.5	-0.207	0.476
0.8	0.181	0.797
