Measurement E19M8

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E19M33 and E19M34 measurements.

Publication:

Quantity measured: Cz, dimensionless
Spin transfer coefficient Cz for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none

W : 1.939 GeV
Eγ : 1.534 GeV

Observable quantity measured (Y axis): Cz, dimensionless

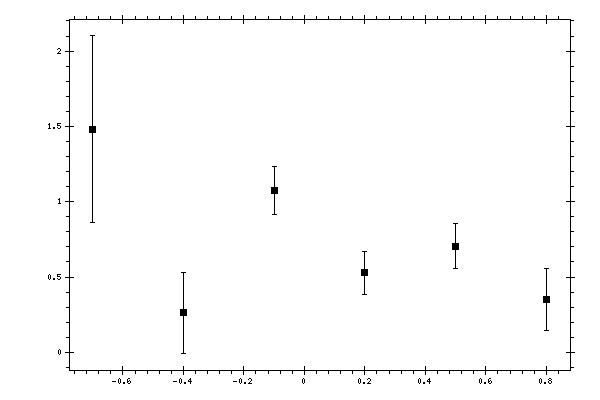

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ),
dimensionless
Cz,
dimensionless
Data errors,
dimensionless
-0.7 1.482 0.619
-0.4 0.262 0.267
-0.1 1.075 0.162
0.2 0.528 0.142
0.5 0.706 0.148
0.8 0.351 0.205
