Measurement E2M60

You are not logged in.

Experiment: CAA Run E1C, 2003

Spokespersons: M. Osipenko, G. Ricco

Experiment comment: The date were obtained from a comined analysis of five different beam energy settings: 1.5, 2.5, 4.0 and 4.4 GeV. The final structure functions are corrected for bin size effect and therefore correspond to an infinitely narrow bins.

Publications:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: inclusive, polarization: none

Q2 : 3.175 GeV2
W : 1.085 — 2.0702 GeV
xb : 0.4825 — 0.9145

Observable quantity measured (Y axis): F2, dimensionless

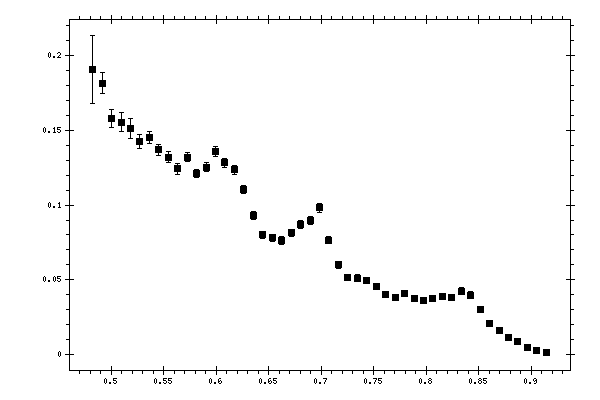

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless
F2,
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
0.4825 0.1908 0.02257 0.02221
0.4915 0.1815 0.007009 0.01896
0.5005 0.1582 0.005947 0.01556
0.5095 0.1556 0.006202 0.01516
0.5185 0.1513 0.006511 0.01371
0.5275 0.1425 0.004547 0.01506
0.5365 0.1453 0.003853 0.01328
0.5455 0.1371 0.00376 0.01198
0.5545 0.1321 0.003582 0.01118
0.5635 0.1244 0.003587 0.01046
0.5725 0.132 0.003072 0.01216
0.5815 0.1212 0.002769 0.01119
0.5905 0.1253 0.002947 0.01189
0.5995 0.1358 0.003144 0.01206
0.6085 0.1284 0.003002 0.01023
0.6175 0.1238 0.002985 0.01008
0.6265 0.1105 0.002822 0.009419
0.6355 0.09319 0.002587 0.0071
0.6445 0.08014 0.002492 0.00749
0.6535 0.07801 0.002402 0.005515
0.6625 0.0762 0.002438 0.006261
0.6715 0.08133 0.002603 0.00627
0.6805 0.0867 0.002677 0.007477
0.6895 0.0897 0.002891 0.007154
0.6985 0.09831 0.003025 0.008019
0.7075 0.07658 0.002585 0.007444
0.7165 0.05999 0.002264 0.005093
0.7255 0.05162 0.00211 0.003734
0.7345 0.05116 0.002112 0.003769
0.7435 0.04947 0.002147 0.003128
0.7525 0.04539 0.002109 0.002848
0.7615 0.0398 0.001972 0.002403
0.7705 0.03817 0.001938 0.002965
0.7795 0.04096 0.002077 0.002453
0.7885 0.03753 0.001996 0.002131
0.7975 0.03586 0.001903 0.002152
0.8065 0.03749 0.002029 0.002302
0.8155 0.03901 0.002074 0.002603
0.8245 0.0382 0.002153 0.002732
0.8335 0.04223 0.002425 0.003093
0.8425 0.03973 0.002243 0.002936
0.8515 0.0303 0.001856 0.004134
0.8605 0.02063 0.001577 0.003594
0.8695 0.01587 0.001231 0.002635
0.8785 0.01108 0.0009497 0.001574
0.8875 0.008691 0.0007689 0.001329
0.8965 0.004941 0.0007493 0.0009284
0.9055 0.002786 0.0005544 0.0007786
0.9145 0.001003 0.0001666 2.866e-05
