Measurement E21M2

You are not logged in.

Experiment: g1c CLAS experiment, 2006

Spokespersons: K. Hicks

Measurement comment: Statistical and systematic errors are added in quadrature.

Publication:

Quantity measured: dσ/dcos(θK*), nb
Differential cross section, where cos(θK*) is cosine of the K* meson azimuthal angle in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K*0 Σ+, polarization: none

W : 2.114 — 2.19 GeV

Observable quantity measured (Y axis): dσ/dcos(θK*), nb

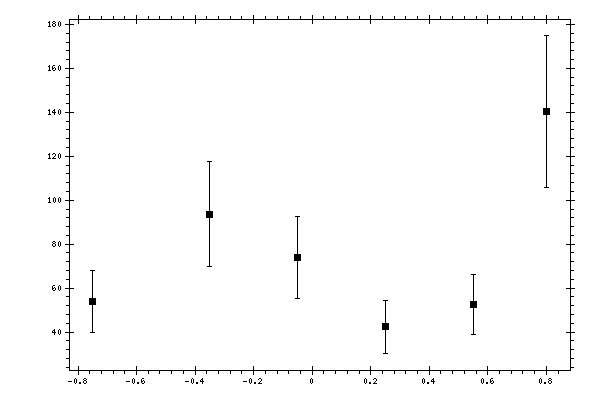

Plot measurement data

Parameter (X axis): cos(θK*), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θK*),
dimensionless
dσ/dcos(θK*),
nb
Data errors,
nb
-0.75 53.8 14
-0.35 93.7 23.7
-0.05 73.9 18.8
0.25 42.3 11.9
0.55 52.5 13.6
0.8 140.4 34.4
