Parameter (X axis): φ, degree
You are not logged in.
Experiment: g10a CLAS experiment, 2007
Spokespersons: K. Hicks, S. Stepanyan
Publication:
Quantity measured: W(φ), dimensionless
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: φ d, polarization: none
| W : | 3.643 — 4.126 GeV |
|---|---|
| Eγ : | 2.6 — 3.6 GeV |
|

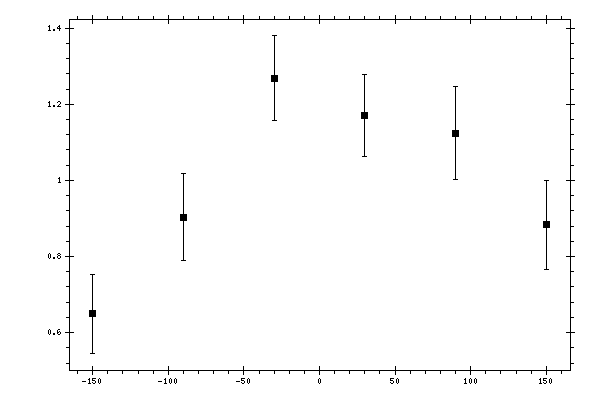

Observable quantity measured (Y axis): W(φ), dimensionless
Parameter (X axis): φ, degree |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
degree |
W(φ),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -150 | 0.65 | 0.104 | 0.033 |
| -90 | 0.903 | 0.114 | 0.088 |
| -30 | 1.269 | 0.111 | 0.111 |
| 30 | 1.171 | 0.107 | 0.111 |
| 90 | 1.124 | 0.122 | 0.077 |
| 150 | 0.883 | 0.117 | 0.046 |
