Measurement E24M4

You are not logged in.

Experiment: g10a CLAS experiment, 2007

Spokespersons: K. Hicks, S. Stepanyan

Publication:

Quantity measured: W(cosθ), dimensionless

Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: φ d, polarization: none

W : 3.085 — 3.643 GeV
Eγ : 1.6 — 2.6 GeV

Observable quantity measured (Y axis): W(cosθ), dimensionless

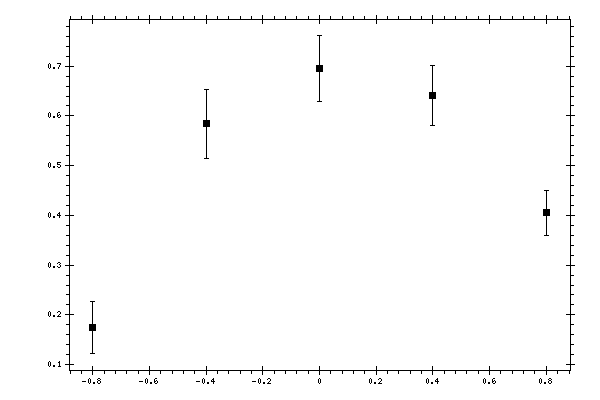

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ),
dimensionless
W(cosθ),
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
-0.8 0.175 0.052 0.009
-0.4 0.584 0.069 0.03
0 0.695 0.066 0.043
0.4 0.641 0.06 0.056
0.8 0.405 0.046 0.038
