Parameter (X axis): cos(θ), dimensionless
You are not logged in.
Experiment: g10a CLAS experiment, 2007
Spokespersons: K. Hicks, S. Stepanyan
Publication:
Quantity measured: W(cosθ), dimensionless
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: φ d, polarization: none
| W : | 3.643 — 4.126 GeV |
|---|---|
| Eγ : | 2.6 — 3.6 GeV |
|
Observable quantity measured (Y axis): W(cosθ), dimensionless
Parameter (X axis): cos(θ), dimensionless |
Click here to get data in text file, delimited with tabs.

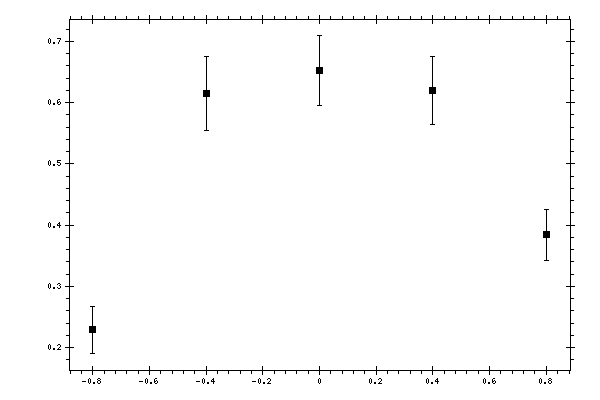

Measured data:
|
cos(θ),
dimensionless |
W(cosθ),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.8 | 0.229 | 0.038 | 0.012 |
| -0.4 | 0.615 | 0.061 | 0.045 |
| 0 | 0.652 | 0.057 | 0.061 |
| 0.4 | 0.62 | 0.055 | 0.053 |
| 0.8 | 0.384 | 0.041 | 0.022 |
