Measurement E24M7

You are not logged in.

Experiment: g10a CLAS experiment, 2007

Spokespersons: K. Hicks, S. Stepanyan

Publication:

T. Mibe, H. Gao, K. Hicks, K. Kramer, S. Stepanyan, D. J. Tedeschi and the CLAS Collaboration First measurement of coherent phi-meson photoproduction on deuteron at low energies // PRC 76, 052202 (2007)

Quantity measured: W(φ), dimensionless

Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: φ d, polarization: none

W :	3.085 — 3.643 GeV
E_γ :	1.6 — 2.6 GeV

Observable quantity measured (Y axis): W(φ), dimensionless

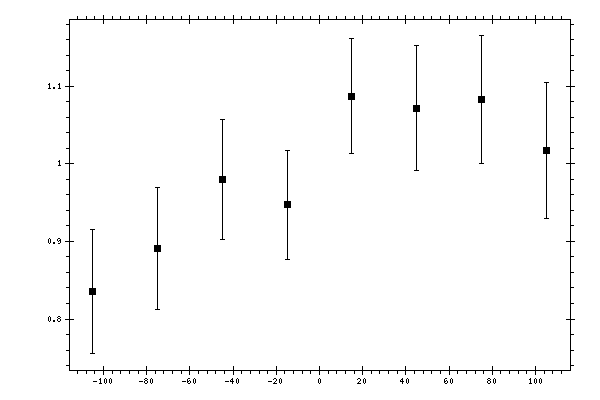

Plot measurement data

Parameter (X axis): φ, degree

Click here to get data in text file, delimited with tabs.

Measured data:

φ, degree	W(φ), dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
-105	0.836	0.08	0.057
-75	0.891	0.079	0.073
-45	0.98	0.077	0.101
-15	0.947	0.07	0.095
15	1.087	0.074	0.131
45	1.072	0.08	0.083
75	1.083	0.082	0.063
105	1.017	0.088	0.066
