Measurement E39M68

You are not logged in.

Experiment: E1-5st-Sigma0 (E93-030/E00-112), 1999

Spokespersons: Mestayer, Hicks, Carman, Raue

Experiment comment: 5 structure function group analysis results for the K+Σ0 channel.

Measurement comment: Measurement of unpolarized structure function σ_U

Publication:

Quantity measured: σ, nb/sr
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none

Q2 : 1 GeV2
W : 2.15 GeV

Observable quantity measured (Y axis): σ, nb/sr

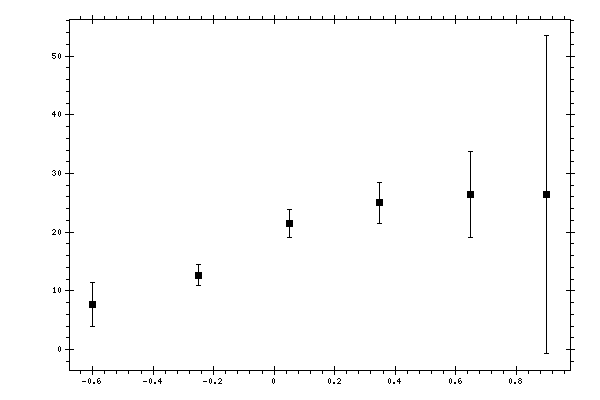

Plot measurement data

Parameter (X axis): cos(θ),

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ) σ,
nb/sr
Data errors,
nb/sr
-0.6 7.75 3.75
-0.25 12.69 1.84
0.05 21.46 2.34
0.35 25.05 3.49
0.65 26.36 7.33
0.9 26.42 27.03
