Measurement E39M77

You are not logged in.

Experiment: E1-5st-Sigma0 (E93-030/E00-112), 1999

Spokespersons: Mestayer, Hicks, Carman, Raue

Experiment comment: 5 structure function group analysis results for the K+Σ0 channel.

Publication:

Quantity measured: σTT, nb/sr
Interference term.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none

Q2 : 1 GeV2
W : 2.35 GeV

Observable quantity measured (Y axis): σTT, nb/sr

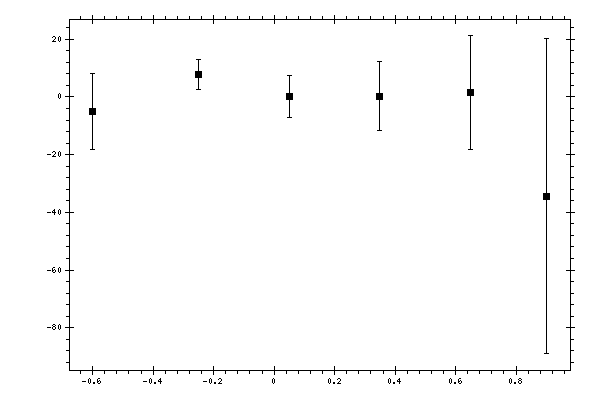

Plot measurement data

Parameter (X axis): cos(θ),

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ) σTT,
nb/sr
Data errors,
nb/sr
-0.6 -5.06 13.13
-0.25 7.77 5.34
0.05 0.13 7.35
0.35 0.25 12.03
0.65 1.55 19.61
0.9 -34.35 54.43
