Measurement E62M29

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/dφ(π+), mcbn/rad
Differential cross section, where φ(π+) is polar angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.2 — 0.25 GeV2
W : 1.55 — 1.575 GeV

Fit φ dependence:

Observable quantity measured (Y axis): dσ/dφ(π+), mcbn/rad

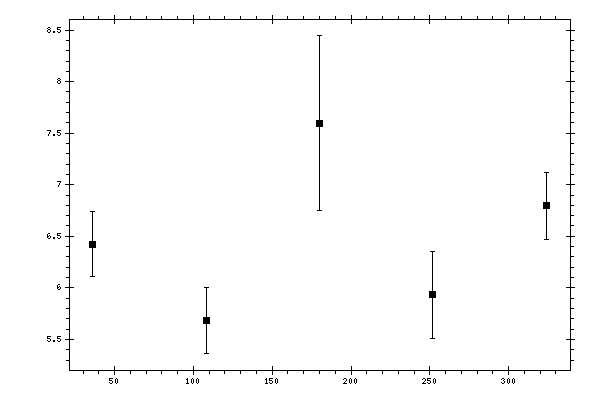

Plot measurement data

Parameter (X axis): φ(π+), deg

Click here to get data in text file, delimited with tabs.

Click here to get calculated fit coefficients in text file, delimited with tabs.

Measured data:

φ(π+),
deg
dσ/dφ(π+),
mcbn/rad
Data errors,
mcbn/rad
36 6.4233298 0.31722537
108 5.6846929 0.31784716
180 7.5962949 0.847772
251.99998 5.9320331 0.42534846
324 6.7941208 0.32893935
