Measurement E62M44

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.2 — 0.25 GeV2
W : 1.575 — 1.6 GeV

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad

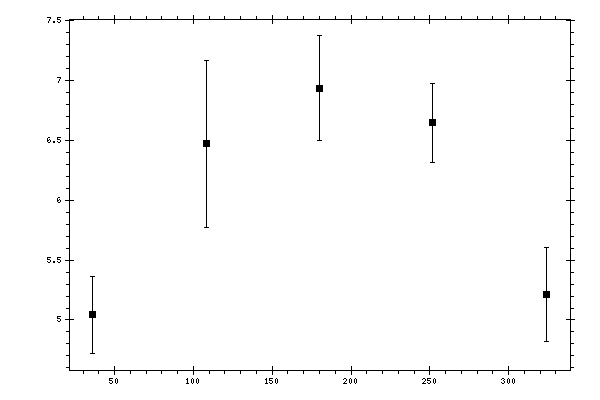

Plot measurement data

Parameter (X axis): ψ(π+), deg

Click here to get data in text file, delimited with tabs.

Measured data:

ψ(π+),
deg
dσ/dψ(π+),
mcbn/rad
Data errors,
mcbn/rad
36 5.0435109 0.32063586
108 6.4717751 0.70078021
180 6.9362617 0.43921366
251.99998 6.6477337 0.32900083
324 5.2116165 0.39417267
