Measurement E62M51

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.25 — 0.3 GeV2
W : 1.3 — 1.325 GeV

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV

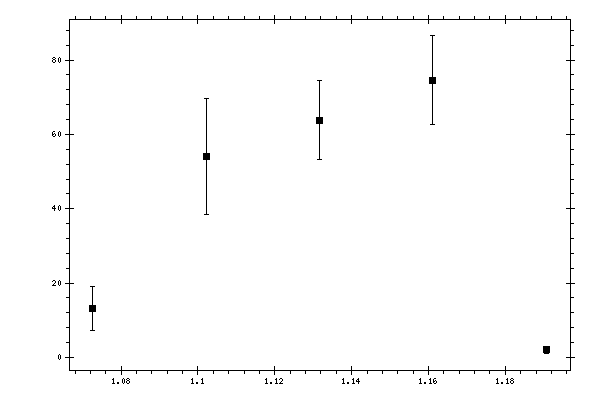

Plot measurement data

Parameter (X axis): M(π+,p), GeV

Click here to get data in text file, delimited with tabs.

Measured data:

M(π+,p),
GeV
dσ/dM(π+,p),
mcbn/GeV
Data errors,
mcbn/GeV
1.0726 13.155519 5.982933
1.10212 54.054367 15.490573
1.13163 63.860909 10.70903
1.16115 74.608109 11.918756
1.19067 2.0640469 0.93229836
