Measurement E62M55

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/dψ(π), mcbn/rad
Differential cross section, where ψ(π) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.25 — 0.3 GeV2
W : 1.3 — 1.325 GeV

Observable quantity measured (Y axis): dσ/dψ(π), mcbn/rad

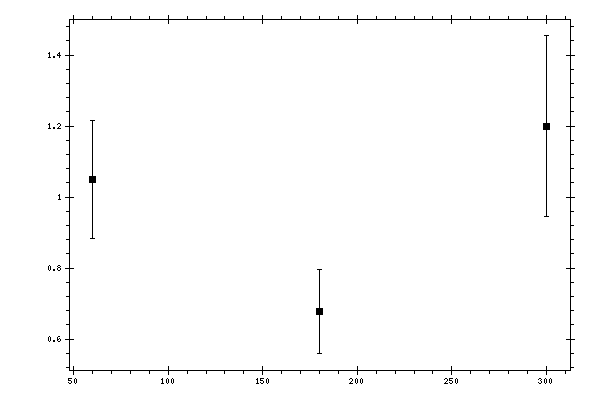

Plot measurement data

Parameter (X axis): ψ(π), deg

Click here to get data in text file, delimited with tabs.

Measured data:

ψ(π),
deg
dσ/dψ(π),
mcbn/rad
Data errors,
mcbn/rad
60 1.0501809 0.16585752
180 0.67797321 0.1175218
299.99997 1.1997371 0.25421375
