Measurement E62M68

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.25 — 0.3 GeV2
W : 1.325 — 1.35 GeV

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad

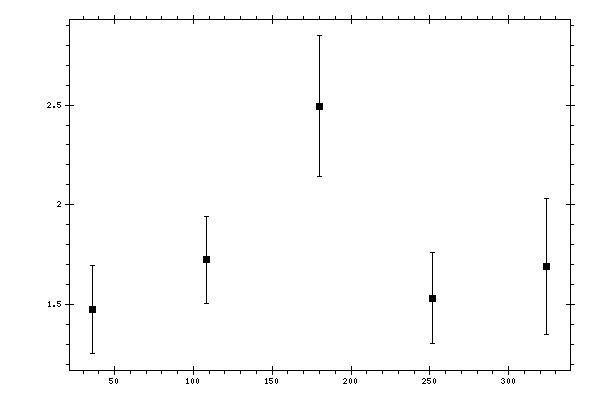

Plot measurement data

Parameter (X axis): ψ(π+), deg

Click here to get data in text file, delimited with tabs.

Measured data:

ψ(π+),
deg
dσ/dψ(π+),
mcbn/rad
Data errors,
mcbn/rad
36 1.4756967 0.22091047
108 1.7236587 0.21839896
180 2.493623 0.35423139
251.99998 1.5313976 0.22766271
324 1.6910907 0.34023994
