Measurement E79M9

You are not logged in.

Experiment: E93-031, 2002

Spokespersons: B. Ritchie

Publication:

Quantity measured: dσ/dΩ, mcbn/sterad
Differential cross section.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none

W : 1.175 GeV
xb : 0

Observable quantity measured (Y axis): dσ/dΩ, mcbn/sterad

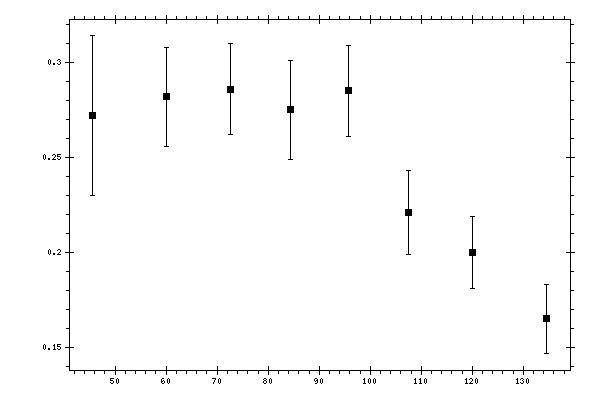

Plot measurement data

Parameter (X axis): θ, deg

Click here to get data in text file, delimited with tabs.

Measured data:

θ,
deg
dσ/dΩ,
mcbn/sterad
Data errors,
mcbn/sterad
134.5 0.165 0.018
120.1 0.2 0.019
107.5 0.221 0.022
95.8 0.285 0.024
84.3 0.275 0.026
72.6 0.286 0.024
60 0.282 0.026
45.6 0.272 0.042
