Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 300 MeV |
|

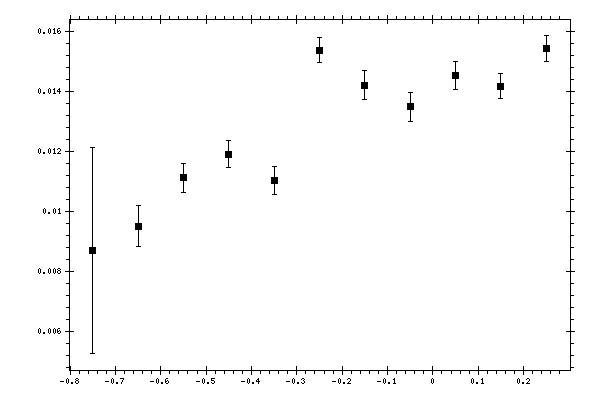

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00870101 | 0.00342861 | 0.0013759 |
| -0.65 | 0.00950835 | 0.000671276 | 0.00137146 |
| -0.55 | 0.0111224 | 0.000481932 | 0.00142885 |
| -0.45 | 0.0119072 | 0.000459806 | 0.00160185 |
| -0.35 | 0.0110194 | 0.000467104 | 0.00152692 |
| -0.25 | 0.0153583 | 0.000416587 | 0.00200676 |
| -0.15 | 0.0142036 | 0.000475003 | 0.00197087 |
| -0.05 | 0.0134812 | 0.000478139 | 0.00193403 |
| 0.05 | 0.0145207 | 0.000477535 | 0.00220185 |
| 0.15 | 0.0141621 | 0.000417468 | 0.00201158 |
| 0.25 | 0.0154164 | 0.000428246 | 0.00245761 |
