Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| Ps: | 340 MeV |
|
Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.

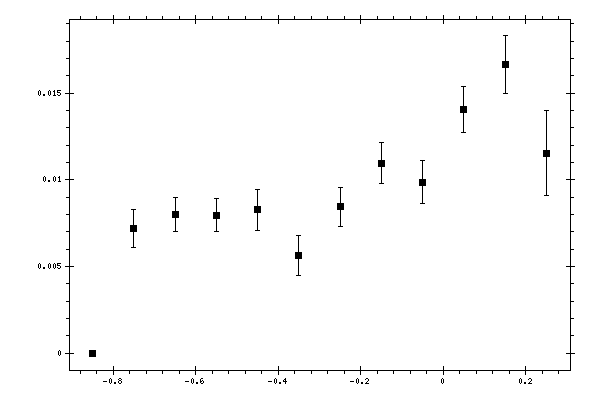

Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0 | 0 | 0.000738889 |
| -0.75 | 0.00719542 | 0.00108996 | 0.00134646 |
| -0.65 | 0.00800195 | 0.000963179 | 0.00157223 |
| -0.55 | 0.00796726 | 0.000974492 | 0.00134941 |
| -0.45 | 0.00826686 | 0.0011781 | 0.00140715 |
| -0.35 | 0.00563373 | 0.00117476 | 0.00124784 |
| -0.25 | 0.00843094 | 0.00113354 | 0.00148249 |
| -0.15 | 0.0109589 | 0.00119229 | 0.00192939 |
| -0.05 | 0.00987166 | 0.0012582 | 0.00202512 |
| 0.05 | 0.0140506 | 0.0013177 | 0.00263304 |
| 0.15 | 0.0166533 | 0.00164821 | 0.00281649 |
| 0.25 | 0.0115395 | 0.00246812 | 0.00208682 |
