Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 340 MeV |
|

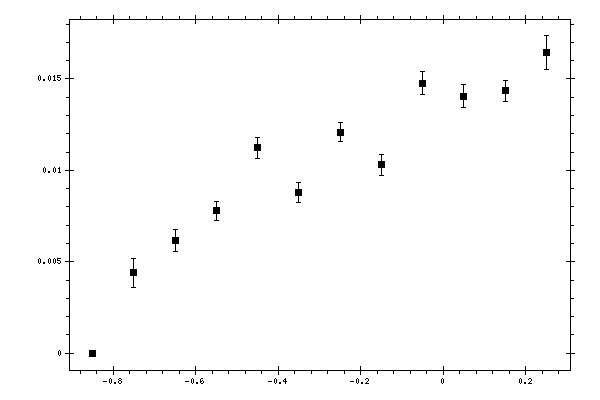

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0 | 0 | 0.000955151 |
| -0.75 | 0.0043968 | 0.000782074 | 0.000678741 |
| -0.65 | 0.00616088 | 0.000576586 | 0.000981386 |
| -0.55 | 0.00777805 | 0.000540839 | 0.00103908 |
| -0.45 | 0.0112355 | 0.000575262 | 0.00144703 |
| -0.35 | 0.00879143 | 0.000553701 | 0.00125239 |
| -0.25 | 0.0120783 | 0.000524849 | 0.00161504 |
| -0.15 | 0.0103024 | 0.000577238 | 0.00156107 |
| -0.05 | 0.0147565 | 0.000631042 | 0.00205697 |
| 0.05 | 0.0140461 | 0.000634692 | 0.00201771 |
| 0.15 | 0.014342 | 0.000572235 | 0.00197456 |
| 0.25 | 0.0164439 | 0.000909683 | 0.00228613 |
