Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 340 MeV |
|

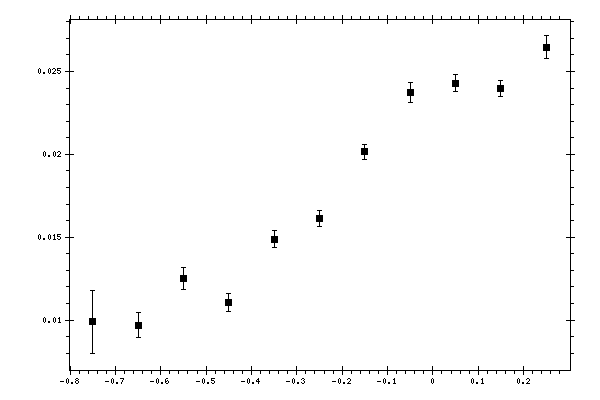

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00990129 | 0.0019014 | 0.0013055 |
| -0.65 | 0.00968372 | 0.000744876 | 0.00140339 |
| -0.55 | 0.012506 | 0.000681248 | 0.00158974 |
| -0.45 | 0.0110554 | 0.000515459 | 0.0013728 |
| -0.35 | 0.0148844 | 0.000527912 | 0.00197007 |
| -0.25 | 0.0161166 | 0.000499769 | 0.00213156 |
| -0.15 | 0.020153 | 0.000463253 | 0.00259553 |
| -0.05 | 0.0237303 | 0.000586559 | 0.00317184 |
| 0.05 | 0.0242996 | 0.000528949 | 0.00309361 |
| 0.15 | 0.023958 | 0.000479603 | 0.00303611 |
| 0.25 | 0.0264632 | 0.000687331 | 0.00345731 |
