Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 340 MeV |
|

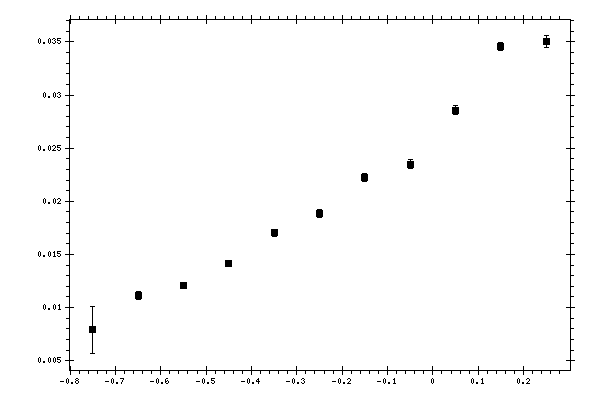

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.0079038 | 0.00219212 | 0.000978711 |
| -0.65 | 0.0111708 | 0.000383059 | 0.00161527 |
| -0.55 | 0.0120883 | 0.00029453 | 0.00162095 |
| -0.45 | 0.0141724 | 0.000283474 | 0.00178076 |
| -0.35 | 0.0170483 | 0.000322734 | 0.0022612 |
| -0.25 | 0.0188542 | 0.000350857 | 0.00242847 |
| -0.15 | 0.0222784 | 0.000381432 | 0.00281241 |
| -0.05 | 0.0235044 | 0.000414097 | 0.00301884 |
| 0.05 | 0.0285788 | 0.000423331 | 0.00353841 |
| 0.15 | 0.03457 | 0.000401593 | 0.00427535 |
| 0.25 | 0.0350199 | 0.000551508 | 0.00444939 |
