Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| Ps: | 340 MeV |
|

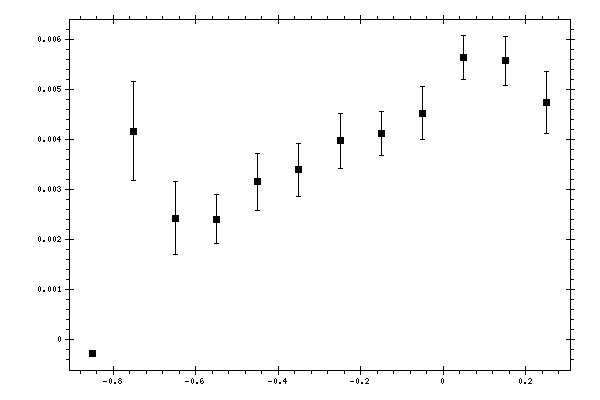

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | -0.000280342 | 0 | 0.000250226 |
| -0.75 | 0.00416438 | 0.000992236 | 0.000889149 |
| -0.65 | 0.00242677 | 0.000724852 | 0.000540146 |
| -0.55 | 0.00240794 | 0.000484304 | 0.000504854 |
| -0.45 | 0.00315101 | 0.000569353 | 0.000652196 |
| -0.35 | 0.00339702 | 0.000533024 | 0.000717922 |
| -0.25 | 0.00397571 | 0.000555343 | 0.000912708 |
| -0.15 | 0.00411859 | 0.00043769 | 0.000810774 |
| -0.05 | 0.00452608 | 0.000528012 | 0.000902946 |
| 0.05 | 0.00564487 | 0.000434125 | 0.00103716 |
| 0.15 | 0.00557569 | 0.000482189 | 0.00100828 |
| 0.25 | 0.00473889 | 0.000618764 | 0.00100184 |
