Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 340 MeV |
|

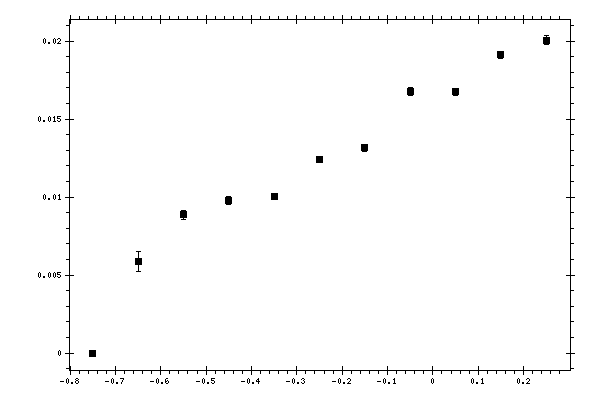

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.000491742 |
| -0.65 | 0.00585646 | 0.000632525 | 0.000865539 |
| -0.55 | 0.00885381 | 0.000269938 | 0.00117356 |
| -0.45 | 0.00978799 | 0.000229997 | 0.00126416 |
| -0.35 | 0.0100542 | 0.000197081 | 0.00132594 |
| -0.25 | 0.0124015 | 0.000210349 | 0.00152575 |
| -0.15 | 0.0131607 | 0.000228491 | 0.00169385 |
| -0.05 | 0.0167655 | 0.000254384 | 0.00213015 |
| 0.05 | 0.0167626 | 0.000230497 | 0.00208484 |
| 0.15 | 0.0191152 | 0.000247273 | 0.00242301 |
| 0.25 | 0.0200564 | 0.000278942 | 0.0024933 |
