Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 390 MeV |
|

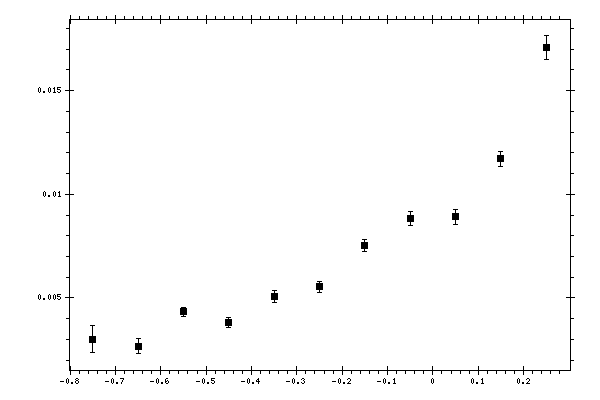

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00301416 | 0.000633764 | 0.000462508 |
| -0.65 | 0.00268232 | 0.000343372 | 0.000428733 |
| -0.55 | 0.00432731 | 0.000224623 | 0.000569331 |
| -0.45 | 0.00381891 | 0.000244925 | 0.000545968 |
| -0.35 | 0.00506417 | 0.000280678 | 0.000799319 |
| -0.25 | 0.00554121 | 0.000270949 | 0.000812973 |
| -0.15 | 0.00753821 | 0.000301222 | 0.0010827 |
| -0.05 | 0.00883522 | 0.000338655 | 0.00125531 |
| 0.05 | 0.00891798 | 0.000364428 | 0.00134607 |
| 0.15 | 0.011708 | 0.000363282 | 0.00170978 |
| 0.25 | 0.0170787 | 0.000560037 | 0.00242792 |
