Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 0.94 GeV |
| Ps: | 390 MeV |
|

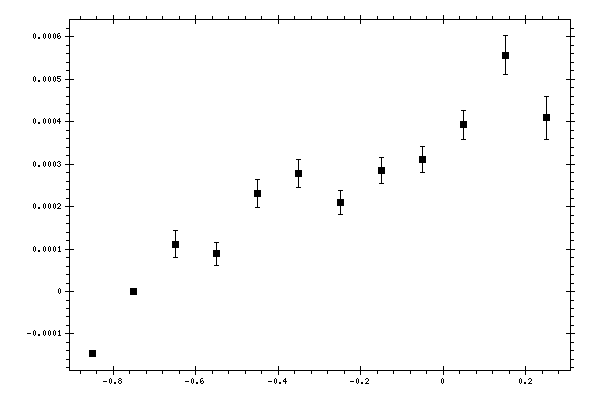

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | -0.000145198 | 0 | 4.13253e-05 |
| -0.75 | 0 | 0 | 1.92305e-05 |
| -0.65 | 0.000111948 | 3.19685e-05 | 2.60557e-05 |
| -0.55 | 8.90878e-05 | 2.7166e-05 | 1.91129e-05 |
| -0.45 | 0.000230632 | 3.33559e-05 | 3.48193e-05 |
| -0.35 | 0.000278425 | 3.38597e-05 | 4.51053e-05 |
| -0.25 | 0.000209186 | 2.83417e-05 | 3.33554e-05 |
| -0.15 | 0.000285238 | 3.05663e-05 | 4.31676e-05 |
| -0.05 | 0.000310827 | 3.09972e-05 | 4.71345e-05 |
| 0.05 | 0.000392752 | 3.49899e-05 | 5.98829e-05 |
| 0.15 | 0.000556559 | 4.59948e-05 | 7.91217e-05 |
| 0.25 | 0.000409001 | 4.98626e-05 | 6.15663e-05 |
