Measurement E90M35

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q2 : 2.8 GeV2
W : 2.02 GeV
Ps: 390 MeV

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless

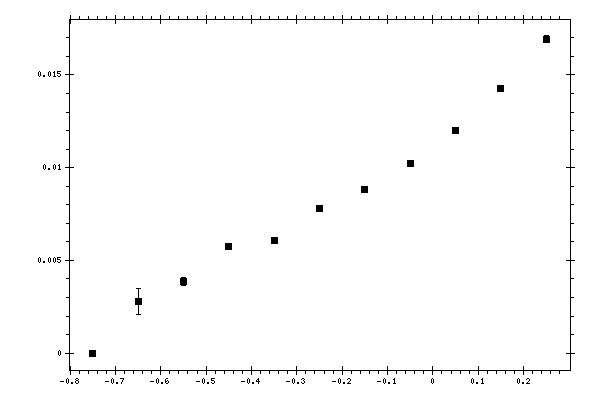

Plot measurement data

Parameter (X axis): cos(θpq), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θpq),
dimensionless
F2 * P(Ps),
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
-0.75 0 0 0.000932193
-0.65 0.00278234 0.000714668 0.000531095
-0.55 0.00386766 0.000204026 0.000584692
-0.45 0.00572417 0.000153791 0.000764309
-0.35 0.00608231 0.000120164 0.000831339
-0.25 0.00782152 0.000123491 0.000985364
-0.15 0.00882055 0.000124683 0.00108671
-0.05 0.0102152 0.0001313 0.00127048
0.05 0.012012 0.00014301 0.00155682
0.15 0.0142449 0.000140753 0.00179246
0.25 0.0169366 0.000172022 0.00218078
