Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 460 MeV |
|

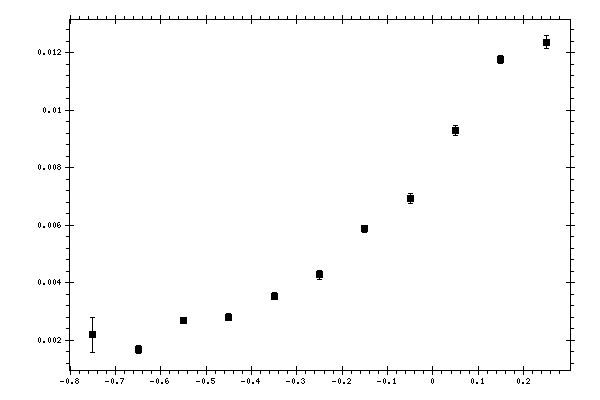

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00219029 | 0.000614465 | 0.000298232 |
| -0.65 | 0.00168024 | 0.000131462 | 0.000355594 |
| -0.55 | 0.00267826 | 0.000110851 | 0.00038648 |
| -0.45 | 0.00280551 | 0.000111781 | 0.00036441 |
| -0.35 | 0.00353263 | 0.000124489 | 0.000445173 |
| -0.25 | 0.00427009 | 0.000148636 | 0.000558792 |
| -0.15 | 0.00587094 | 0.000125146 | 0.000777877 |
| -0.05 | 0.00692642 | 0.000175131 | 0.00090476 |
| 0.05 | 0.00929873 | 0.000163789 | 0.00123334 |
| 0.15 | 0.0117708 | 0.000153888 | 0.00154696 |
| 0.25 | 0.0123709 | 0.00022153 | 0.00167077 |
