Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 460 MeV |
|

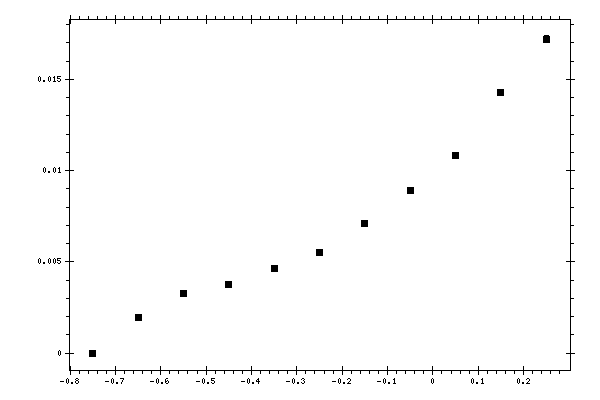

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.000448087 |
| -0.65 | 0.00195296 | 0.000180829 | 0.000438504 |
| -0.55 | 0.00326025 | 6.71089e-05 | 0.000507579 |
| -0.45 | 0.00376159 | 4.82066e-05 | 0.00048542 |
| -0.35 | 0.00463893 | 4.97371e-05 | 0.000565377 |
| -0.25 | 0.0055051 | 7.42515e-05 | 0.000688406 |
| -0.15 | 0.00710162 | 7.84467e-05 | 0.000920683 |
| -0.05 | 0.00889112 | 0.000118461 | 0.00108105 |
| 0.05 | 0.0108331 | 0.000130428 | 0.00140069 |
| 0.15 | 0.0142549 | 0.000121952 | 0.00175866 |
| 0.25 | 0.0171943 | 0.000183327 | 0.00224727 |
