Measurement E90M42

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q2 : 1.8 GeV2
W : 2.4 GeV
Ps: 460 MeV

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless

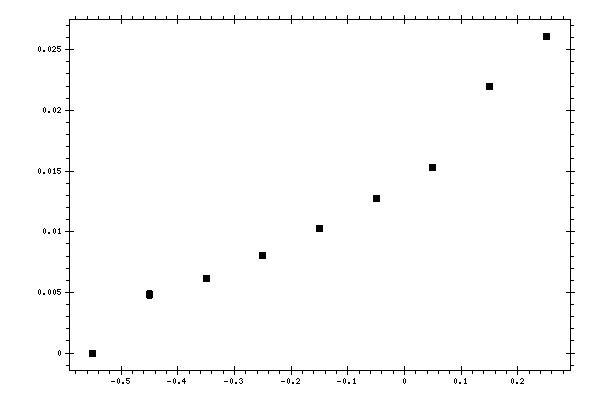

Plot measurement data

Parameter (X axis): cos(θpq), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θpq),
dimensionless
F2 * P(Ps),
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
-0.55 0 0 0.000772597
-0.45 0.00484582 0.000324241 0.000753784
-0.35 0.00614385 0.000125249 0.000848485
-0.25 0.00803896 8.0238e-05 0.00102558
-0.15 0.0102686 6.98856e-05 0.00140852
-0.05 0.0127322 6.57468e-05 0.00161886
0.05 0.0152823 6.68259e-05 0.00205981
0.15 0.02197 6.66632e-05 0.00292407
0.25 0.0260421 8.92471e-05 0.00356032
