Measurement E90M45

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q2 : 2.8 GeV2
W : 1.5 GeV
Ps: 460 MeV

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless

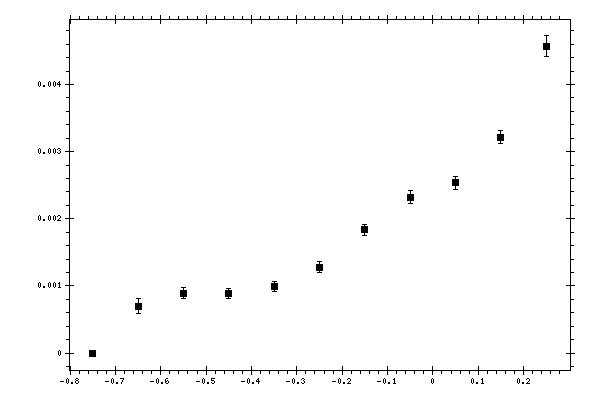

Plot measurement data

Parameter (X axis): cos(θpq), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θpq),
dimensionless
F2 * P(Ps),
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
-0.75 0 0 5.42479e-05
-0.65 0.000700691 0.000115941 0.000152507
-0.55 0.000894106 8.30881e-05 0.000140214
-0.45 0.000893856 7.43184e-05 0.000127337
-0.35 0.00099435 7.18756e-05 0.000139285
-0.25 0.00128215 8.79081e-05 0.000195861
-0.15 0.00183531 8.26205e-05 0.000281104
-0.05 0.00232356 9.83767e-05 0.000341874
0.05 0.00253767 9.88605e-05 0.000370355
0.15 0.00321347 9.82218e-05 0.000462588
0.25 0.00457096 0.000154109 0.000659196
