Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 460 MeV |
|

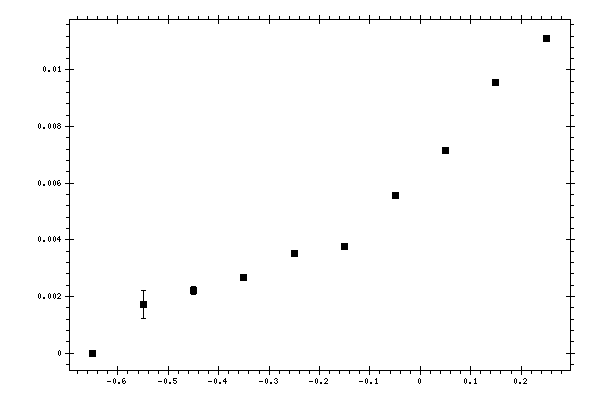

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.65 | 0 | 0 | 0.000464279 |
| -0.55 | 0.00170974 | 0.000485806 | 0.000310286 |
| -0.45 | 0.00221749 | 0.000151885 | 0.000324552 |
| -0.35 | 0.0026844 | 8.7237e-05 | 0.000361998 |
| -0.25 | 0.00351958 | 7.75832e-05 | 0.000448117 |
| -0.15 | 0.00377493 | 6.86897e-05 | 0.000509225 |
| -0.05 | 0.00557664 | 7.35105e-05 | 0.000687425 |
| 0.05 | 0.0071424 | 7.57595e-05 | 0.000903706 |
| 0.15 | 0.00957018 | 7.77485e-05 | 0.00118446 |
| 0.25 | 0.011108 | 9.72367e-05 | 0.001408 |
