Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 1.8 GeV2 |
|---|---|
| W : | 2.02 GeV |
| Ps: | 300 MeV |
|

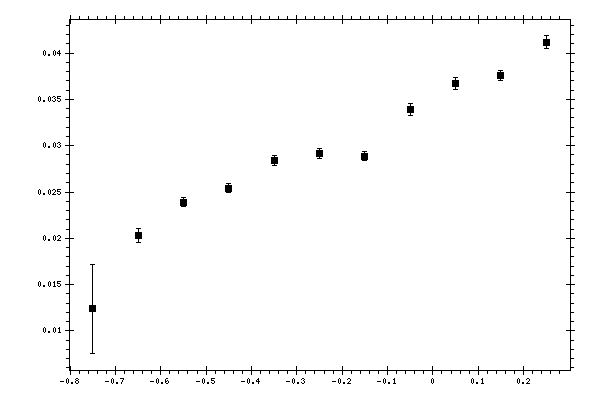

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.0123744 | 0.00477991 | 0.00218316 |
| -0.65 | 0.0203289 | 0.000732427 | 0.00290761 |
| -0.55 | 0.0238875 | 0.000506333 | 0.00300667 |
| -0.45 | 0.0254244 | 0.000495479 | 0.00336845 |
| -0.35 | 0.0284154 | 0.000509012 | 0.00370382 |
| -0.25 | 0.0291505 | 0.000557453 | 0.00385517 |
| -0.15 | 0.0288773 | 0.00051909 | 0.00374166 |
| -0.05 | 0.033872 | 0.000649181 | 0.00469729 |
| 0.05 | 0.036733 | 0.000647233 | 0.00523285 |
| 0.15 | 0.0375737 | 0.000524876 | 0.00489078 |
| 0.25 | 0.0411887 | 0.000677172 | 0.00629376 |
